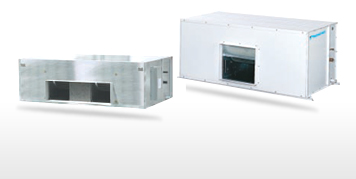

Duct Connection (High Static Pressure Type FD)

Comfortable Superior air distribution for comfortable living The conditioned air can be effectively distributed to every corner of the room through the ducting and this realise a more pleasant environment for comfort living.

Compact Compact design of built-in type helps blend with interior decor. Indoor models are designed with compact size with twin coil structure. This design is able to provide some saving in space for installation.

Model FD75CV1M, FD100CV1M, FD125BY1M, FD150BAY1M, FD200B2Y1M, FD250B2Y1M
FD300B2Y1M, FD350B3Y1M, FD400B4Y1M, FD450B3Y1M, FD500B4Y1M, FD600B4Y1M

Comfortable

Superior air distribution for comfortable living
The conditioned air can be effectively distributed to every corner of the room through the ducting and this realise a more pleasant environment for comfort living.

Air discharge Orientation.
FD75-200 models come with standard horizontal air discharge.
FD250-500 models only come with standard vertical air discharge and they can be converted to horizontal air discharge at the site. FD250-500B models with horizontal air discharge are not offered from factory. FD600B models are offered in vertical and horizontal air discharge as standard

Flexibility of air supply
FD125-600 models using belt driven blower such as that the air volume and static required can be adjusted according to the requirement. This flexibility allows for wider application.

Versatility

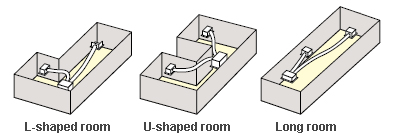

Multiple rooms can be cooled together at the same time by using just one unit of fan coil unit.

Fresh air intake for healthy living
Fresh air can be introduced into the building through the design of fresh air intakes. This will help to improve the indoor air quality.

Compact

Compact design of built-in type helps blend with interior decor.
Indoor models are designed with compact size with twin coil structure. This design is able to provide some saving in space for installation.

Low Height
Both FD75 and FD100 offer lower height at 430mm only. With this, the unit allows more ceiling heigh space for interior design.

Work & Servicing

Easy maintenance
The simple design concept has provided the ease of maintenance and servicing. Access to the internal part of the unit can be from the service panel or other side of the unit by loosening a few screws.

Outdoor Unit

Scroll compressor
All outdoor units are using scroll compressor which has better energy efficienty and quiet in operation.

Anti-corrosion of heat exchanger fin
The heat exchanger fin of outdoor units are anti-corrosion treated. (Gold fin)

Remote controller
SLM Controller
(Standard)
AC5300 Controller
(Option)
Sequential Controller
(Standard)
