Introduction

Reluctance DC Inverter Power Control Achieves High COPs The DC Inverter Series features the Reluctance DC compressor motor and DC fan motor. The High-Tech Energy-Saving package is completed by Diakin's advanced swing compressor and PAM control. FTXS25E achieves a COP of 4.17, 48% higher than conventional models. This is the result of upgrading from conventional AC inverter to advanced DC inverter technology.

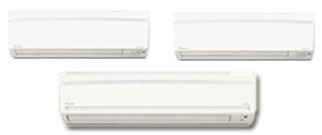

Models :
Cooling only
FTKS 25/35E, FTKS 50/60/71F
Heat Pump
FTXS 25/35E, FTXS 50/60/71F

Comfortable Airflow Function	FTK(X)S 25/35E	FTK(X)S 50/60/71F
Power-Airflow Dual Flaps Power-Airflow Dual Flasps can flatten out during cooling operation to deliver cool air to the corners of a room."The flaps can direct warm air straight down to the floor during heating operation."
Wide-Angle Louvers The smoothly curved Wide-Angle Louvers provide wide airflow coverage for effective cooling/heating operation no matter where the indoor unit is placed in a room.
Vertical Auto-Swing (up and down) This function automatically moves the flaps up and down to distribute air across a room.
Horizontal Auto-Swing (left and right) Horizontal Auto-Swing automatically moves the louvres to the left and right to cover a room with cool/warm air.
3-D Airflow This function combines Vertical and Horizontal Auto-Swing to circulate a cloud of cool/warm air right to the corners of even large spaces.

Comfort Control	FTK(X)S 25/35E	FTK(X)S 50/60/71F
Indoor Unit Quiet Operation Indoor unit operating sound levels are decreased by 3 dB from the Low settign fan speed using the wireless remote controller.
Outdoor Unit Quiet Operation Outdoor unit operating sound levels are decreased by 3 to 4 dB from the rated operation sound using the wireless remote controller.
Intelligent Eye Intelligent Eye with its infra-red sensor automatically controls air conditioner operation according to human movement in a room. When there is no movement, it adjusts the temperature by 2.C for energy saving of up to 20%.
Automatic Operation* This function automatically selects cooling or heating operation mode based on the room temperature at start-up.
Programme Dry Function This function automatically reduces the level of humidity while maintaining the preset room temperature.
Auto Fan Speed The microprocessor automatically controls fan speed to adjust the room temprature to the set temperature.
Wireless Remote Controller Wireless Remore Controller to control AC

Lifestyle Convenience	FTK(X)S 25/35E	FTK(X)S 50/60/71F
Econo Mode This mode limits maximum running current and power consumption to 70% of normal operation, while maintaining maximum capacity at 80%. This improves operating efficiency and also prevents circuit breakers from being overloaded.
Home Leave Operation Home Leave Operation continues operation to prevent a room from becoming too hot or cold, while you are sleeping or out of your home. Select any temperature from 18 to 320C. for cooling operation and 10 to 30 deg. C. for heating operation.
Inverter Powerful Operation This function is convenient for boosting cooling/heating performance for a 20-minute period, both when you first turn on your air conditioner or want to quickly change the room temperature.
Indoor Unit On/Off Switch There is a second On/Off switch on the body of the indoor unit to prevent any problems if the wireless remote controller is misplaced.

Cleanliness	FTK(X)S 25/35E	FTK(X)S 50/60/71F
Titanium Apatite Photocatalytic Air-Purifying Filter This filter contains the new photocatalytic material titanium apatite. While the filter’s micron-level fibres trap dust, this photocatalyst adsorbs and decomposes bacteria and viruses, and breaks down mould and odours. The filter can be used for up to 3 years with proper maintenance.
Mould-Proof Operation automatically runs fan-only operation for 1 hour when cooling or dry operation is stopped. This airflow prevents the generation of mould and mould odours inside the indoor unit.
Wipe-Clean Flat Panel The flat panel models can be cleaned with only single swipe of cloth across their smooth surface. The flat panel can also be easily removed for more thorough cleaning.

Timer	FTK(X)S 25/35E	FTK(X)S 50/60/71F
Indoor Unit Quiet Operation Indoor unit operating sound levels are decreased by 3 dB from the Low settign fan speed using the wireless remote controller.
Night Set Mode Pressing the Off timer button automatically selects Night Set Mode. This function prevents any sudden change in room temperature by gently raising the temperature before the air conditioner stops. So you can sleep comfortably.

Worry Free	FTK(X)S 25/35E	FTK(X)S 50/60/71F
Auto-Restart after Power Failure The air conditioner memorises the settings for mode, airflow, temperature, etc., and automatically returns to them when power is restored after a power failure.
Self-Diagnosis with Digital Display Malfunction codes are shown on the digital display panel of teh wireless remote controller for fast and easy maintenance.'
Anti-corrosion Treatment of Outdoor Heat Exchanger Fins The outdoor units heat exchanger fins are processed using a special anti-corrosion treatment. The surface is covered with a thin acrylic resin layer to enhance the fins resistance to acid rain and salt corrosion.
